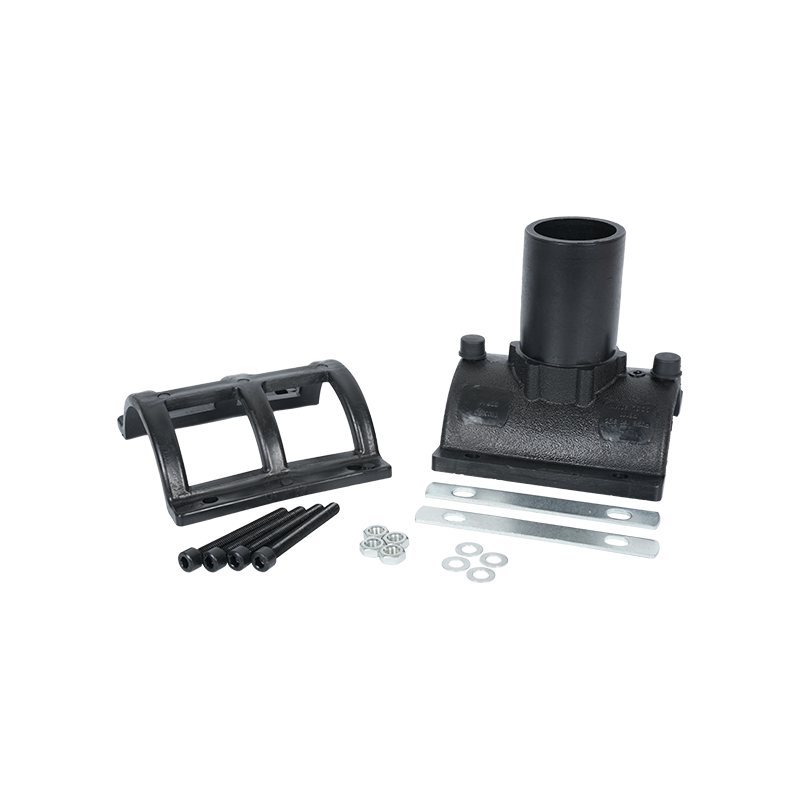

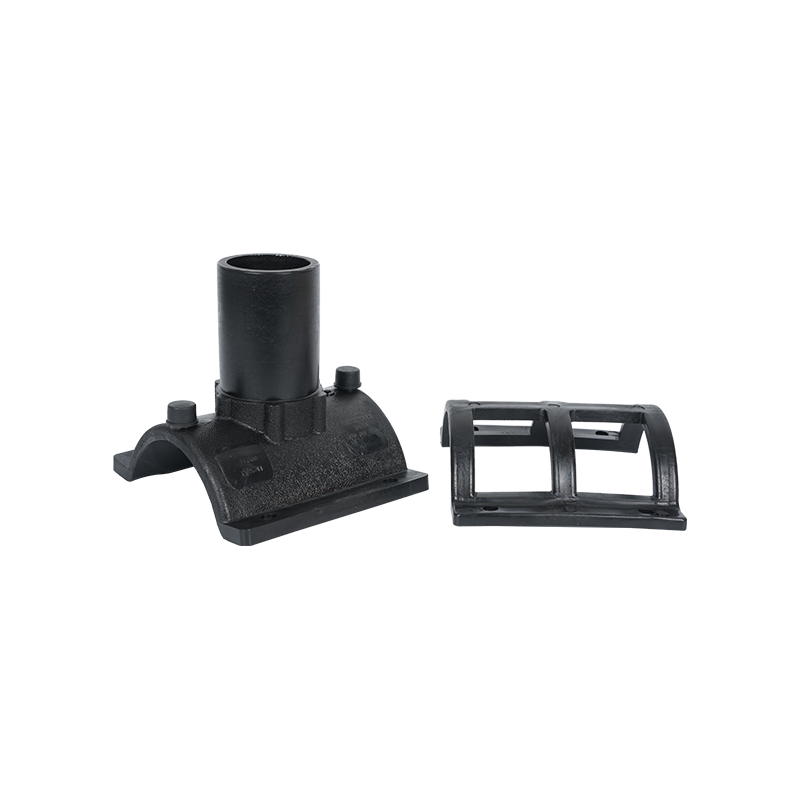

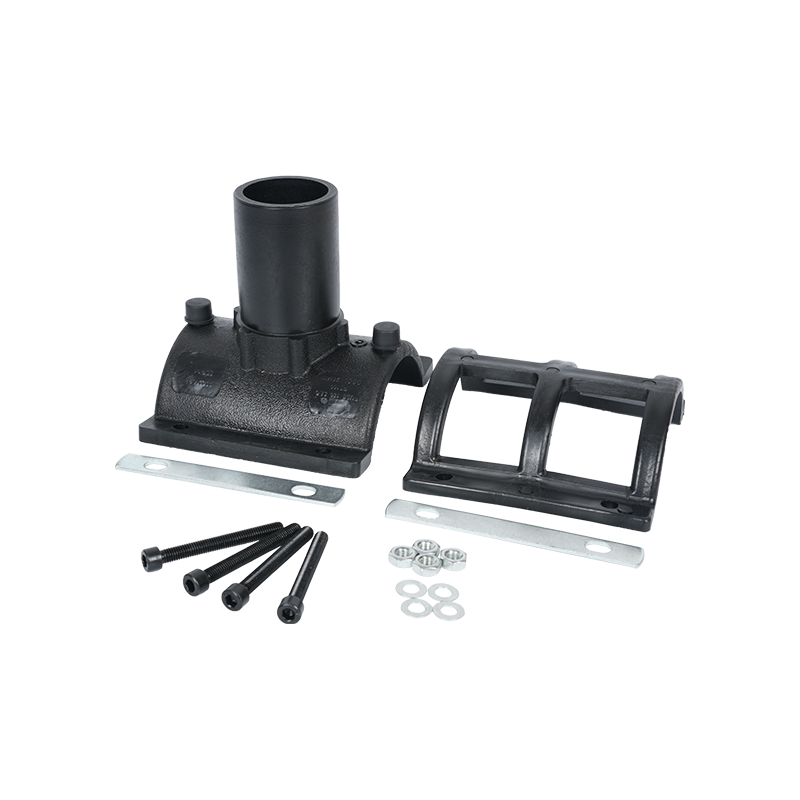

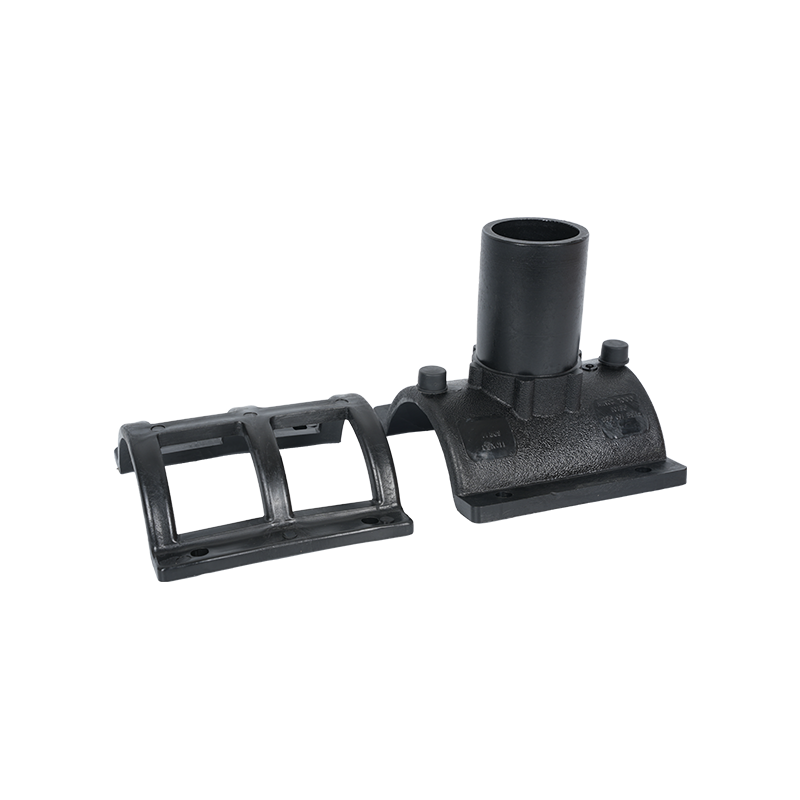

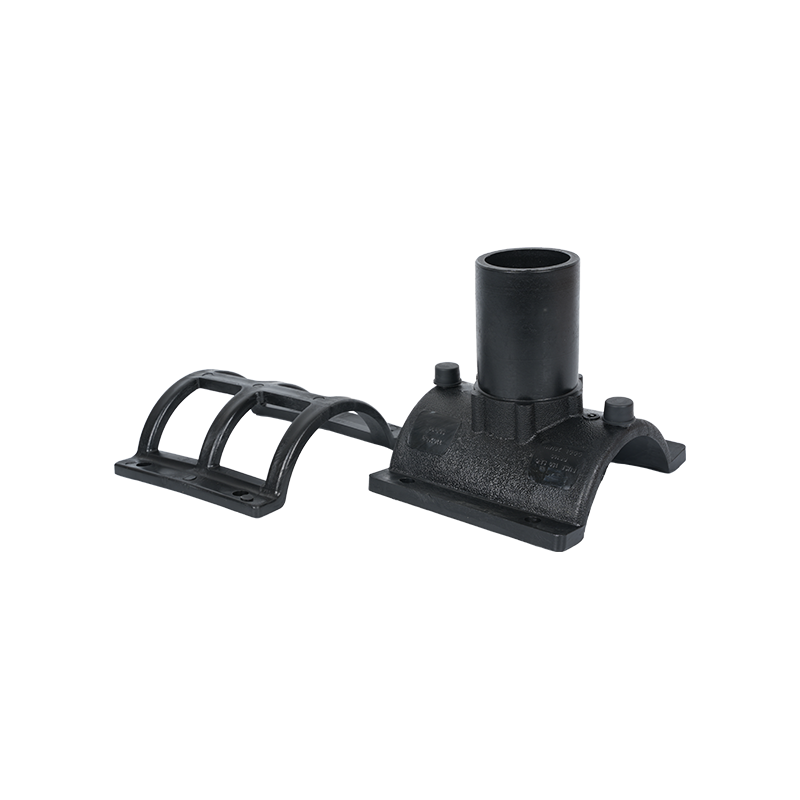

Zhejiang Fengfeng Pipe Industy's Electrofusion Tapping Saddle is a device used in the installation of a branch connection to a pipeline, typically in gas, water, or other fluid distribution systems. It is designed for use with electrofusion fittings, which utilize electrical heating elements to create a secure and permanent joint between two plastic pipes, commonly made from materials like PE (Polyethylene).
Technical Characteristics
Key Features of Electrofusion Tapping Saddles:
Branch Connection: The tapping saddle allows a branch pipe (typically smaller in diameter) to be connected to a larger pipeline without interrupting the flow or requiring the removal of the main pipe.
Electrofusion Technology: The saddle features built-in electrical resistance heating elements. When power is applied, the elements heat up and fuse the saddle securely to the main pipeline, ensuring a leak-proof and durable connection.
Ease of Installation: Electrofusion saddles are generally quicker and easier to install compared to traditional welding or mechanical fittings. The electrofusion process also minimizes the need for skilled labor during the installation.
Compatibility: These saddles are often used with PE pipes and can be adapted for various sizes and pressure ratings depending on the pipeline system's requirements.
Leakproof Seal: The electrofusion process creates a homogeneous bond between the saddle and the pipe, reducing the likelihood of leaks compared to mechanical tapping tees or other traditional methods.
Durability: The use of electrofusion ensures the joint is as strong as the pipe itself, offering long-lasting performance in demanding environments.
Applications:
Water Distribution Networks: Used for connecting a branch pipeline to a main water supply line.
Gas Distribution Systems: Commonly used in natural gas pipelines, where safety and reliability are paramount.
Industrial Systems: Can also be used in a variety of industrial piping systems requiring safe, secure, and efficient connections.
Specifications

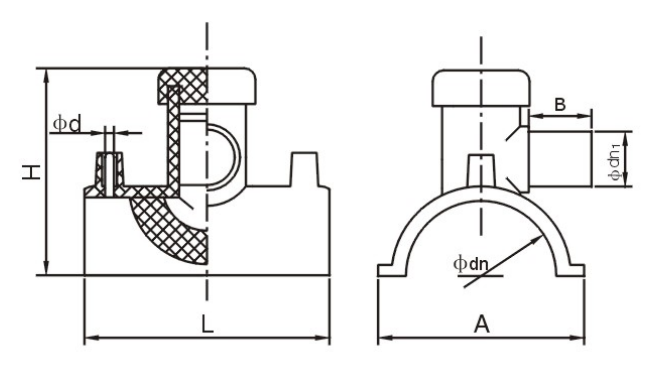

Specification Φdn×Φdn1 |
L | A | B | H | ITEM No. |
63×20 | 115 | 100 | 52 | 122 | ET63×20 |
63×25 | 115 | 100 | 52 | 122 | ET63×25 |
63×32 | 115 | 100 | 65 | 122 | ET63×32 |
75×20 | 115 | 100 | 52 | 122 | ET75×20 |
75×25 | 115 | 100 | 52 | 122 | ET75×25 |
75×32 | 115 | 100 | 65 | 122 | ET75×32 |
90×20 | 130 | 143 | 56 | 145 | ET90×20 |
90×25 | 130 | 143 | 56 | 145 | ET90×25 |
90×32 | 130 | 143 | 56 | 185 | ET90×32 |
90×63 | 140 | 140 | 85 | 185 | ET90×63 |
110×20 | 130 | 155 | 55 | 145 | ET110×20 |
110×25 | 130 | 155 | 55 | 145 | ET110×25 |
110×32 | 130 | 155 | 60 | 150 | ET110×32 |
110×40 | 145 | 160 | 63 | 180 | ET110×40 |
110×50 | 145 | 160 | 61 | 177 | ET110×50 |
110×63 | 140 | 155 | 73 | 200 | ET110×63 |
125×25 | 130 | 155 | 55 | 145 | ET125×25 |
125×63 | 140 | 155 | 73 | 200 | ET125×63 |
160×25 | 142 | 199 | 66 | 169 | ET160×25 |
160×32 | 142 | 197 | 72 | 169 | ET160×32 |
160×50 | 190 | 240 | 85 | 235 | ET160×50 |
160×63 | 190 | 240 | 80 | 235 | ET160×63 |
160×90 | 190 | 240 | 125 | 235 | ET160×90 |
180×25 | 142 | 199 | 66 | 169 | ET180×25 |
200×63 | 190 | 250 | 85 | 235 | ET200×63 |
200×90 | 190 | 250 | 120 | 235 | ET200×90 |
225×32 | 193 | 253 | 65 | ET225×32 | |
225×63 | 190 | 250 | 85 | 235 | ET225×63 |
225×90 | 190 | 250 | 120 | 235 | ET225×90 |
250×63 | 190 | 305 | 91 | 250 | ET250×63 |
250×90 | 190 | 305 | 118 | 250 | ET250×90 |
280×63 | 190 | 305 | 91 | 250 | ET280×63 |
280×90 | 190 | 305 | 118 | 250 | ET280×90 |
315×63 | 190 | 315 | 85 | 250 | ET315×63 |
315×90 | 190 | 315 | 155 | 250 | ET315×90 |
